A bottom plate for a valve assembly, also known as a subplate or a base plate, provides a standardized mounting surface for hydraulic or pneumatic valves. These plates act as an interface between the valves and the rest of the system, distributing fluid flow and regulating pressure from a central block.
Product overview
Core function
A bottom plate consolidates the plumbing of a hydraulic or pneumatic system, eliminating the need for extensive individual tubing and connections. It provides a clean, secure, and standardized surface to install components like directional control valves, pressure relief valves, and other modular valves.
Design types
Mono-block manifold: Machined from a single block of steel, aluminum, or ductile iron, with all fluid passages drilled internally. Mono-blocks are prized for their durability and minimized leak points.
Modular manifold: Constructed from multiple base plates that can be stacked together to create complex hydraulic or pneumatic circuits. This design offers high flexibility for system designers.

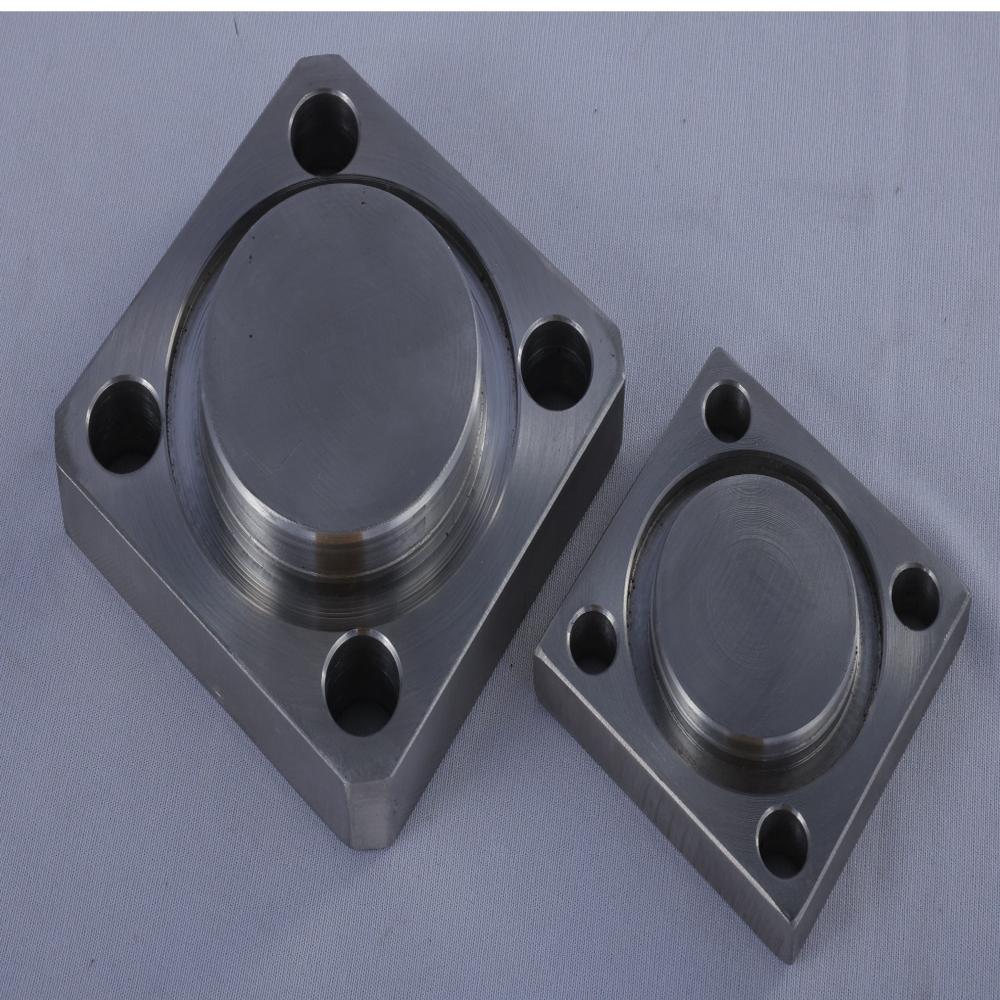

Top-Grade Forged Stainless Steel Construction
Our bottom plates are crafted using advanced forging techniques from stainless steel, ensuring extraordinary strength and longevity. This manufacturing process enhances the structural integrity of each plate, making them ideal for use in challenging industrial environments such as marine, valve, and generator applications.
Versatile Application for Diverse Industries
Engineered for versatility, our equal-shaped, standard-sized bottom plates serve a wide range of industrial sectors. Their adaptability ensures they can be seamlessly integrated into valve assemblies, marine systems, and power generators, meeting rigorous performance requirements while maintaining reliable operation.
FAQs of Bottom Plates:
Q: How are your stainless steel bottom plates manufactured?
A: The bottom plates are produced using the forging technique, which provides enhanced strength and durability by shaping high-quality stainless steel under extreme pressure, ensuring consistent performance in industrial settings.
Q: What applications are these bottom plates suitable for?
A: These plates are designed for industrial applications, especially suitable for integration with valves, marine equipment, and generators, thanks to their robust construction and equal shape.
Q: When should stainless steel bottom plates be used?
A: Stainless steel bottom plates should be employed whenever structural stability, corrosion resistance, and long-term reliability are essential, particularly in harsh industrial environments or machinery exposed to moisture.
Q: Where are you located and do you export bottom plates?
A: We are based in India and offer our bottom plates as an exporter, manufacturer, and supplier, catering to clients both domestically and internationally.
Q: What is the process of ordering bottom plates for industrial use?
A: Clients can contact us directly with their specific requirements regarding size and quantity. Our team will assist with product selection, provide quotations, and arrange prompt delivery worldwide.
Q: How can these bottom plates benefit my industrial setup?
A: These forged stainless steel plates deliver excellent strength and corrosion resistance, extending the lifespan of key machinery components while ensuring reliability in demanding environments.
